Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080

    Buy cheap Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080 from wholesalers

    Buy cheap Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080 from wholesalers
    • Buy cheap Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080 from wholesalers
    • Buy cheap Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080 from wholesalers

    Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080

    Ask Lasest Price
    Brand Name : Securina
    Model Number : SA10080
    Certification : FCC-SDoC, CE
    Price : $4999 - $29999/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000 sets/month
    Delivery Time : 5-10 working days after payment confirmation
    • Product Details
    • Company Profile

    Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080

    Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080



    X Ray Cargo Scanner Introduction:

    SA10080 heavy-duty conveyorized direct transmission X-ray inspection system is designed for screening large objects, hold baggage and cargo for concealed weapons, explosives and contraband.

    Multi-energy color allows operators to quickly spot areas of concern in the most thickly packed parcels, bulk loads and baggage. The system's high-capacity conveyor sits less than a foot from the floor for easier, more ergonomic loading.

    • 1. Perfect for air cargo screening
    • 2. autoSensing assures 100% screening of all items,
      3. no matter how thin or low
    • 4. Ideal for inspecting oversized and out-of-gauge objects


    X Ray Cargo Scanner Technical Parameter:


    Dimension (L×W×H)

    3138.5mm x1295mm x1716.5 mm

    G.Weight

    1070Kg

    Control Board

    AIMB 501G2

    CPU

    G1610 2.6G

    Storage space

    2GB 1600MHz DDR3 Innodisk

    Computer system

    XP system system

    X ray Dose per inspection

    <1.5μSv

    X-ray Leakage

    <0.5 μSv/h (at a distance of 5cm From external housing)

    Penetration

    30 mm steel guarantee, 32mm steel typical

    Wire Resolution

    38 AWG guarantee, 40 AWG typical

    Spatial resolution Level

    Dia1.3mm,Vertical: dia1.6mm

    Power Consumption

    1.0KW (max), 0.7KW(working)

    Noise<58db
    Anode Voltage140 - 160kv(adjustable)
    Anode power0.2-1.2mA
    Generate angle80 degree upward
    Generate directFrom bottom to top
    Cooling / Duty CycleOil Cooling /100%

    X Ray Cargo Scanner Operating Environment​:

    Operating temperature: 5℃ - 40℃
    Operating Humidity: 10% - 95% (non-condensing)
    Storage Temperature: -20℃ to 60℃
    Storage Humidity: 10% - 95% (non-condensing)
    Operation Power: 220VAC (±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
    Power Consumption: 1.0KW (max), 0.7KW (working)


    About Securina:


    Securina is professional manufacturer, factory exportor, Chinese supplier for metal detectors and security screening equipments.

    The complete range of security inspection system are walk through metal detector, x-ray baggage scanner, handheld metal detector, UVSS, Food metal detector and tyre killer, road blocker, hydraulic bollards.etc

    Securina system already supplied to South Africa, Zimbabwe, Nigeria, Cameroon, Sierra Leone, Liberia, Ghana, Malawi, Seychelles, Gambia, Kenya, Ethiopia, Eritrea, Somalia, Lesotho, Swaziland, Sudan, Uganda, Tanzania, Zambia, Namibia, Botswana, St. Helkina.etc African markets.

    Also cooperated with customer from Russia, Ukraine, Belarus, Estonia, Latvia, Lithuania, Moldavia, Georgia, Armenia, Azerbaijan, Kazakhstan, Uzbekistan, Kyrgyzstan, Turkmenistan, Tajikistan.etc

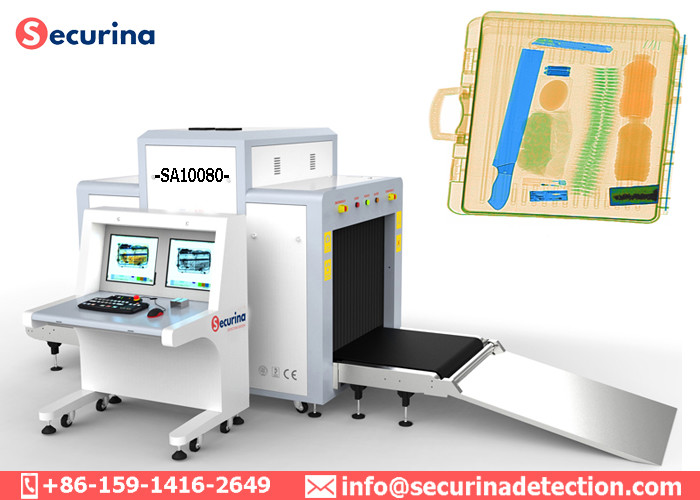

    X Ray Cargo Scanner Product Pictures:

    Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080

    Quality Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080 for sale
