Automatic Alarm Airport X Ray Baggage Scanner Security Inspection Equipment 0.22m/s

    Buy cheap Automatic Alarm Airport X Ray Baggage Scanner Security Inspection Equipment 0.22m/s from wholesalers

    Buy cheap Automatic Alarm Airport X Ray Baggage Scanner Security Inspection Equipment 0.22m/s from wholesalers
    • Buy cheap Automatic Alarm Airport X Ray Baggage Scanner Security Inspection Equipment 0.22m/s from wholesalers
    • Buy cheap Automatic Alarm Airport X Ray Baggage Scanner Security Inspection Equipment 0.22m/s from wholesalers
    • Buy cheap Automatic Alarm Airport X Ray Baggage Scanner Security Inspection Equipment 0.22m/s from wholesalers

    Automatic Alarm Airport X Ray Baggage Scanner Security Inspection Equipment 0.22m/s

    Ask Lasest Price
    Brand Name : Securina
    Model Number : SA5030
    Certification : FCC-SDoC, CE
    Price : $4999 - $29999/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000 sets/month
    Delivery Time : 5-10 working days after payment confirmation
    • Product Details
    • Company Profile

    Automatic Alarm Airport X Ray Baggage Scanner Security Inspection Equipment 0.22m/s


    Automatic Alarm Airport X-Ray Baggage Security Inspection Scanner Security Equipment


    X Ray Baggage Scanner Main Markets:


    Our security screening systems have been exported to overseas for more than 10 years.

    The products have been exported to Europe, South America, Africa, Middle East, Asia,

    and in Spain, Turkey, Saudi Arabia, United Arab Emirates, Colombia, Peru, Nigeria, Kenya, Russia,

    Kazakhstan, Pakistan, Philippines, Malaysia have established joint after-sales service centers.

    Securina is equipped with sufficient inventory and fast delivery time in 5-7 working days.

    X Ray Baggage Scanner Image Process :


    1. Image Enhancement: 1-32times enlargement continuity, negative,general enhancement,etc

    2. Image Recall: All preceding images recallable, retrieva

    3. High Density Region Alarm: Impenetrable region alarm and highlight,

    for possible concealing of threats and contrabands

    4. Threat Image Projection: Inserting fictional, but realistic images of threat items into

    baggage during screening operation, for maintenance of vigilance, as well as training and

    assessment of image identification capability

    5. Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and

    converting to JPG


    X Ray Baggage Scanner Operating Environment​:


    Operating temperature: 0℃-40℃

    Operating Humidity: 10%-95% (non-condensing)

    Storage Temperature: -20℃to 60℃

    Storage Humidity: 5%-95% (non-condensing)

    Operation Power: 220VAC (±15%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)

    Power Consumption: 1.0KW (max), 0.7KW (working)


    X Ray Baggage Scanner Technical Parameter:


    Dimension (L×W×H)

    1660mm x746mm x1165 mm

    X Ray Scanner N.Weight

    350Kg

    G.Weight

    400KG

    Control Board

    IMX6_mainboard-V030

    RAM

    1 G

    CPU

    Cortex A9

    Storage space

    500GB

    Computer system

    LINUX system


    X Ray Baggage Scanner other Specifications:

    X ray Dose per inspection: <0.1.25μSv

    Wire Resolution: 38 AWG typical

    Spatial resolution Level: dia1.3mm,Vertical: dia1.6mm

    Penetration: 2-4mm steel

    Penetration Resolution: Guarantee 32AWG

    Film Safety: Guarantee ASA/ISO1600 Film

    X-ray Leakage: <2.0 μSv/h (at a distance of 5cm From external housing)

    Cooling / Duty Cycle: Oil Cooling /100%

    Detect PCB board: UK brand Sensortech

    Extension Rollers: customize size length

    UPS: 15mins, 30mins, 60mins etc, optional


    X-ray Generator:


    Anode Voltage: 80kv

    Anode power: 0.35mA

    Generate angle: 80 degree upward

    Brand: Made in China

    Generate direct: from bottom to top

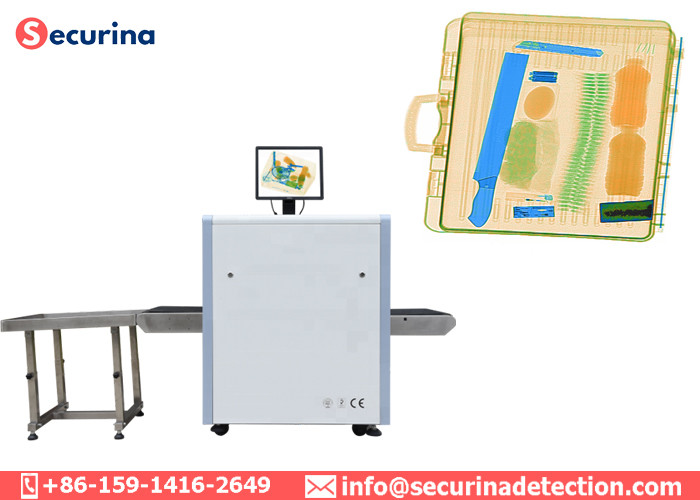

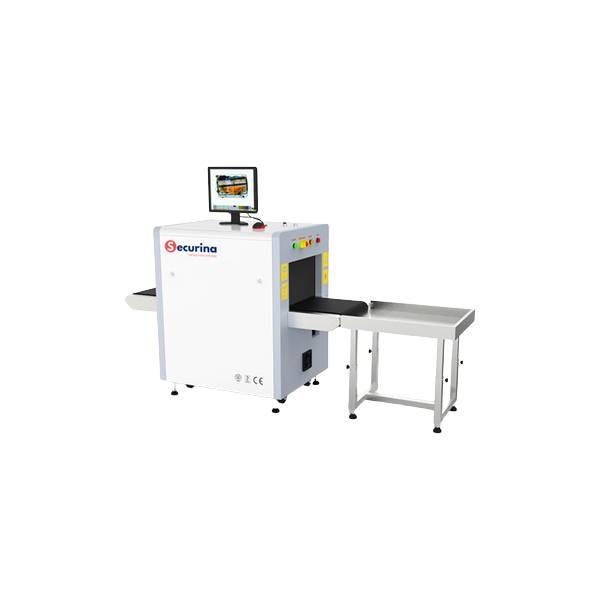

    X Ray Baggage Scanner Product Pictures:


    Automatic Alarm Airport X Ray Baggage Scanner Security Inspection Equipment 0.22m/s
