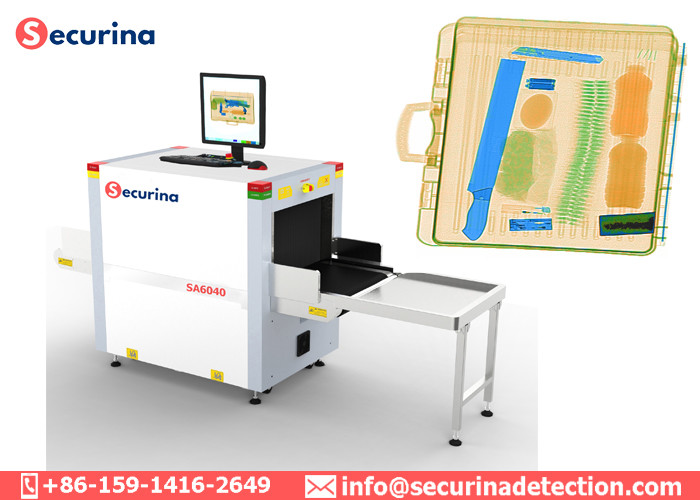

    X Ray Introscope Hand Baggage Scanner Device For Security Inspection

    X Ray Introscope Hand Baggage Scanner Device For Security Inspection


    X ray introscope scanner introduction :


    An X-ray introscope is a special X-ray scanning device that allows you to study the internal structure without the need for opening. X-ray television installations(baggage scanners) are widely used for the inspection of personal belongings at airports, train stations, metro stations, etc. Currently, there are many types of introscopy(Security Scanners), but the most popular is the use of X-ray due to its convenience and relative simplicity. In this case, the so-called X-ray structural analysis is carried out - due to diffraction scattering of radiation, a projection of the internal structure of the object is created.


    • For viewing luggage and hand luggage - the most common type of setting They have a small size, one or two X-ray generators, depending on the design features of the model;
    • For inspection of large baggage and pallets - the most powerful X-ray television installation, penetrates any density of the object, has many additional functions;
    • For inspection of cars - they have more power in relation to the X-ray television installation of baggage. Such installations have a high throughput;
    • Mobile X-ray television inspection system - the installation is placed in a vehicle, this is a mobile type of inspection system. Convenient for outdoor events.

    Security x ray introscope baggage scanner specifications SA6040:


    Tunnel Size600(W)*400(H)mm
    Conveyor Speed0.22m/s
    Conveyor Max Load170kg
    Dose per Inspection<2.9μ Gy/h
    Resolution<0.101mm Metal Wire
    Spatial resolutionLevel: Dia1.0mm, Vertical: Dia1.3mm
    Penetrate resolutionDia 0.511mm
    Penetration30-32mm steel
    Film SafetyGuarantee ISO1600 Film
    X-ray Leakage<0.5 μ Gy/h (at a distance of 5cm From external housing)
    Image System :
    Technical PrincipleDual-energy X-ray Imaging; L Shaped Array
    X-ray SensorL-Shaped Photodiode Array (multi-energetic)
    MonitorHigh Resolution Color, LCD Accord, 17inch
    Image DisplayHigh resolution of 1024 * 1280 pixel; Image Grey Level: 65536
    Image Enhancement1-64times enlargement continuity, Color/BW, negative, high/low
    penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
    Image Recall:All preceding images recallable, retrieval.
    Explosives & Narcotics DetectionExplosives & narcotics alarm and highlight according to atomic number signature
    High Density Region AlarmImpenetrable region alarm and highlight, for possible concealing of
    threats and contrabands
    Image ArchiveUp to 100,000 images stored automatically, enable transferring to USB disk, and
    converting to JPG, BMP and other general formats
    Miscellaneous FunctionsTime/date display, counters, user management, system-on/X-ray-on
    timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training,etc
    Network ApplicationsMultiple remote applications available based on Ethernet LAN and
    windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
    Images process24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536
    Operating Environment:
    Operation temperature/Humidity0ºC-40ºC/10%-95%(non-condensing)
    Storage Temperature/Humidity-20ºCto 60ºC/ 5%-95%(non-condensing)
    Operation Power220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
    Power Consumption1.0KW (max), 0.7KW(working)
    Noise<58db
    Scanner Dimensions (L×W×H)2007.5mm x868mm x1314 mm
    Gross Weight600kgs
    Packing Volume3.5 CBM
    X-ray Generator:
    Anode Voltage140kv
    Anode Power0.35 MA
    Generate angle80 degree upward
    BrandChinese Brand
    Generate directfrom bottom to top
    Cooling / Duty CycleOil Cooling /100


    FAQ


    How many days we can get the x-ray scanner machine after payment?

    Normally, the equipment in stock only needs 3-5 days. If there is no inventory, it will take 10-15 days to produce. We will provide sea transportation, air transportation and other modes of transportation according to your needs


    Securina professional in manufacturing:


    1. Airport security screening equpiments, like x-ray baggage scanner, walk through metal detectors, handheld metal detector, under vehicle surveillance system, search camera, search mirror, liquid scanner, explosive detector, bomb blanket, bomb container, explosion suppression device, etc.

    2. Industrial metal detector, conveyor metal detetor, food metal detector, nail detector, needle detector for quality control in factory.
