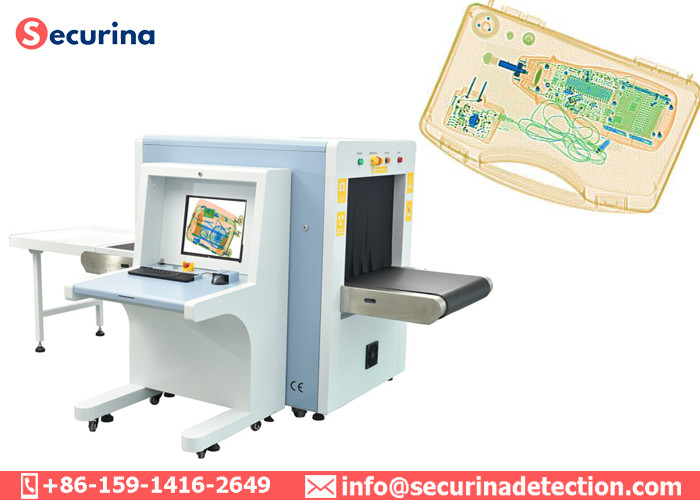

    Color Scanning Image Security X Ray Machine Airport Baggage X Ray Machines

    Ask Lasest Price
    Brand Name : Securina
    Model Number : SA6550
    Certification : FCC-SDoC, CE
    Price : $4999 - $29999/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000 sets/month
    Delivery Time : 5-10 working days after payment confirmation
    • Product Details
    • Company Profile

    Color Scanning Image Security X Ray Machine Airport Baggage X Ray Machines


    Color Scanning Image Security X-Ray Machine, Airport Baggage X Ray Machines


    Airport Baggage X-ray Machine Features:


    1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
    2. Safety ray: Ray is transmitted under automatic control, avoiding the error
    3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
    4. Eagle eye: Capable of expediently observing the magnifying area
    5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance


    Airport Baggage X-ray Machine Applications:

    • Airports, seaports and public transportation
    • Banks and financial institutions
    • Schools and sports stadiums
    • Churches and lecture halls
    • Hospital ER and MRI room
    • Hotels, conference centers and casinos
    • Courthouses, police facilities and government
    • Prisons and jails
    • Embassies and broadcast studios
    • Power plant and research center
    • Military bases


    Airport Baggage X-ray Machine Specifications:


    Dimension (L×W×H)

    2200mm x918mm x1442mm

    X Ray Scanner N.Weight

    512Kg

    G.Weight

    670KG

    Control Board

    AIMB 501G2

    CPU

    G1610 2.6G

    Storage space

    2GB 1600MHz DDR3 Innodisk

    Computer system

    XP system system

    X ray Dose per inspection

    <1.14μSv

    X-ray Leakage

    <0.5 μSv/h (at a distance of 5cm From external housing)

    Penetration

    30 mm steel guarantee, 32mm steel typical

    Wire Resolution

    38 AWG guarantee, 40 AWG typical

    Spatial resolution Level

    Dia1.0mm,Vertical: dia1.0mm

    Power Consumption

    1.0KW (max), 0.7KW(working)

    Noise<58db
    Anode Voltage140kv
    Anode power0.3mA
    Generate angle80 degree upward
    Generate directFrom bottom to top
    Cooling / Duty CycleOil Cooling /100%


    Airport Baggage X-ray Machine Operating Environment​:

    Operating temperature: 0℃-40℃
    Operating Humidity: 10%-95% (non-condensing)
    Storage Temperature: -20℃to 60℃
    Storage Humidity: 5%-95% (non-condensing)
    Operation Power: 220VAC (±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
    Power Consumption: 1.0KW (max), 0.7KW (working)
