Penetration 32mm Steel Security Screening X-ray Equipment, Baggage
Inspection Introscopes SA6040
Baggage Inspection Introscopes Overview:

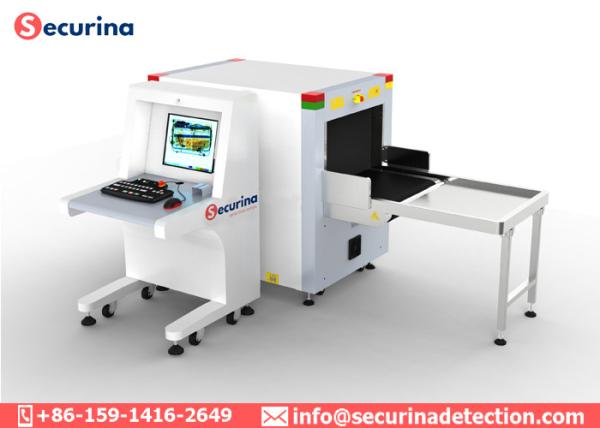

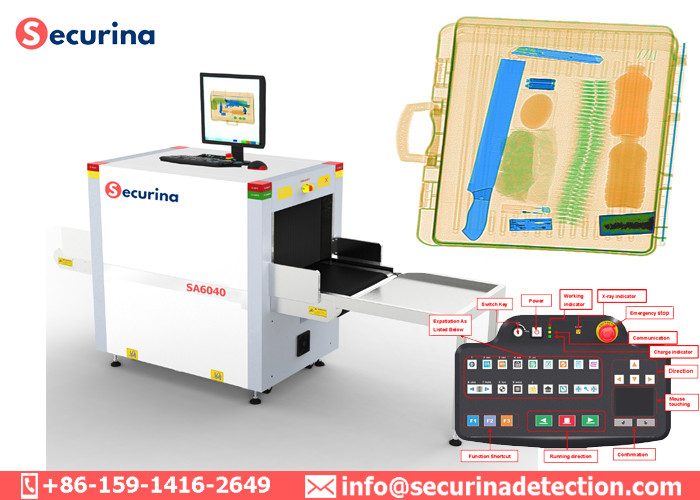

Securina SA6040 X-Ray Baggage Inspection Introscope features a
tunnel opening of 60.0 x 40.0 cm (23.6” x 15.7”). SA6040 offers a
compact design with increased dimensions to enable a wider range of
placement and screening of more diverse objects. The single-source,
multi-energy SA6040 X-ray inspection system is designed to screen
small- to mid-sized items for weapons, explosives, drugs and other
contraband. The right size for scanning strollers, briefcases,
backpacks, purses and other hand-carried items. SA6040 has found
placement at hotels, prisons, government sites, and transportation
hubs.
Baggage Inspection Introscopes Specifications:
| Tunnel Size | 600(W)*400(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 170kg |
| Dose per Inspection | <2.9μ Gy/h |
| Resolution | <0.101mm Metal Wire |
| Spatial resolution | Level: Dia1.0mm, Vertical: Dia1.3mm |
| Penetrate resolution | Dia 0.511mm |
| Penetration | 30-32mm steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <0.5 μ Gy/h (at a distance of 5cm From external housing) |
| Image System : |
| Technical Principle | Dual-energy X-ray Imaging; L Shaped Array |
| X-ray Sensor | L-Shaped Photodiode Array (multi-energetic) |
| Monitor | High Resolution Color, LCD Accord, 17inch |
| Image Display | High resolution of 1024 * 1280 pixel; Image Grey Level: 65536 |
| Image Enhancement | 1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and
pseudo color, etc. |
| Image Recall: | All preceding images recallable, retrieval. |
| Explosives & Narcotics Detection | Explosives & narcotics alarm and highlight according to atomic
number signature |
| High Density Region Alarm | Impenetrable region alarm and highlight, for possible concealing of
threats and contrabands |
| Image Archive | Up to 100,000 images stored automatically, enable transferring to
USB disk, and
converting to JPG, BMP and other general formats |
| Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on
timers, power on self test, built-in diagnostic facilities,
dual-direction scanning, system log, system standby and stimulant
training,etc |
| Network Applications | Multiple remote applications available based on Ethernet LAN and
windows platform, such as image centralized storage and identify,
recheck workstation, and network TIP, etc ( Optional) . |
| Images process | 24bit real time processing ,4colors analysis, Images displayed
marked date and ID NO ,Count the number of bags ,Memory gray
level:65536 |
| Operating Environment: |
| Operation temperature/Humidity | 0ºC-40ºC/10%-95%(non-condensing) |
| Storage Temperature/Humidity | -20ºCto 60ºC/ 5%-95%(non-condensing) |
| Operation Power | 220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC) |
| Power Consumption | 1.0KW (max), 0.7KW(working) |
| Noise | <58db |
| Scanner Dimensions (L×W×H) | 2007.5mm x868mm x1314 mm |
| Gross Weight | 600kgs |
| Packing Volume | 3.5 CBM |
| X-ray Generator: |
| Anode Voltage | 140kv |
| Anode Power | 0.35 MA |
| Generate angle | 80 degree upward |
| Brand | Chinese Brand |
| Generate direct | from bottom to top |
| Cooling / Duty Cycle | Oil Cooling /100 |
